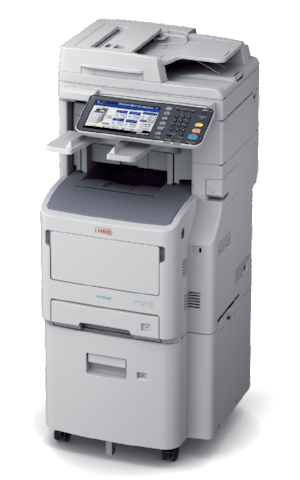

OKI ES7170 A4 Mono Multifunction Printer

OKI enterprise class A4 MFPs – designed for seamless integration into business workflow.

Featuring super-fast print speeds of up to 52 pages per minute, the ES7170 MFP is built to perform. In-built functionality and OKI’s embedded platform sXP (smart Extendable Platform) open architecture improve device management and document workflow, saving time and improving the productivity of large, busy workgroups.

Super-fast print speeds and in-built document workflow technology including OKI’s flexible embedded platform sXP (smart Extendable Platform) make the high-performance ES7170 MFP a great, high-capacity performer for large busy workgroups. Where high Speed Mono A4 printing is required you cant go past this MFP. Great for busy lawyers, Accountants and financial planning offices. If this sounds like what you need but occassionally use colour look at the brother of the ES7170 the OKI ES7470 Colour A4 MFP.​

High performance – Super-fast print and copy speeds



Designed to deliver enterprise-class performance, the ES7170 MFP is ideal for demanding workgroup use. In-built high-performance features are geared to improve productivity and document workflow, including super-fast high-definition printing, scanning and copying functions.

  • Super-fast 52ppm print speedPaper capacity of up to 3,160 sheets
  • Built-in convenience stapler
  • Fast scan speeds of up to 40ppm (colour) and 52ppm (mono)
  • Duplex scanning
  • Up to 200K monthly duty cycle
  • 1.2GHz processor and 2GB RAM memory
  • Standard 160GB HDD
  • ​10/100/1000 baseT Ethernet
Business flexibility – Software integration and advanced document management



Streamlining document-intensive processes, OKI’s embedded sXP (smart Extendable Platform) web-services based platform enables seamless integration with third-party solutions. Bespoke internal system set up and an easy-to-use, customisable touch screen make day-to-day document capture, distribution and management more efficient.

  • Third-party software connectivity for seamless network integratio
  • Customisable 23cm colour LCD touch screen
  • Job Macro function stores frequent tasks
  • ​Scan to filing box, shared folder, email and USB memory
Secure workflows – High-level security protects business data and documents



Featuring advanced security and encryption to the highest industry standards, the ES7170 MFP protects confidential data and sensitive documents with sophisticated user authentication, preventing unauthorised access. User access is customisable, enabling admins to easily enable or disable security functions according to business requirements.

  • Secure print job encryptio
  • SNMPv3 and optional IPSec secure networking
  • PIN/IC Card/LDAP/Kerberos access control
  • ​Secure print with PIN or with optional card reader (MIFARE /HID)
Eco-features – Reduce running costs with energy-saving technology



Keeping print budgets low, the high-performance ES7170 MFP is built using reliable digital LED technology. Cost-saving eco-features help save energy while high-capacity toners and duplex printing reduce consumables and paper consumption.

  • Duplex print, copy and scan functions for reduced paper usage
  • High-capacity toners
  • Toner-save function
  • Uses 2W or less of energy in Deep Sleep mode
  • ​Energy Star certified
OKI ES7170DFN MFP – PRINTER SPECIFICATION
Number of users 1 – 30+
Functionality Duplex copying, printing and scanning
A4 Print speed 52ppm
A4 Copy speed Up to 52ppm
A4 Scan speed Up to 40/55ppm colour/mono
Maximum paper capacity 3,160 sheets of 80gsm
Monthly print volume 30,000 pages
Finishing Convenience stapler, internal finisher
COPY
Type Desktop
Scanning Method Color CIS
Printing Technology Digital LED Electrophotographic Printing Method
Input Capacity Tray 1 : 530 sheets
(Optional)Additional Tray : 530 sheets
(Optional)Large Capacity Feeder : 2000 sheets
Multi-purpose tray : 100 sheets
Scan Resolution Up to 600 x 600 dpi
Print Resolution Up to 600 x 600 dpi
Original Size Flatbed: A6, A5, A4, Letter, Legal 14; ADF: A5, A4, B5, Letter, Legal 14
Reduction / Enlargement 25 – 400 %
Maximum Copies 999 sheets
Copy Speed A4 52 cpm
First Copy Out Time Approx. 8.0 seconds
Warm-up Time Approx. 19.0 seconds from power save
Approx. 35.0 seconds from deep sleep
Power Source Single phase 220 – 240 VAC ±10%, 50/60 Hz ±2%
Power Consumption Operating: Max. 1,500W / Ave. 870W
Idle: 120W
Power Save: 40.0W
Deep Sleep: 1.5W
Auto-Off: 0.5W
Memory (Std./Max.) 2GB/2GB
Safety & Environment Regulation Blue Angel, Energy Star, EMC-Directive, GS Mark, CE Mark
Noise Level Operating :Approx. 58 dBA
Idle: < 30 dBA
Operating Environment Operating: 10 – 32 °C, 20 – 80 %RH
Storage: 0 – 43 °C, 10 – 90 %RH
No condensation
Dimensions(WxDxH) 522 x 564 x 675 mm
Weight(includes supplies) Approx. 50.0 kg
Duty Cycle Recommended: 20,000 pages/month
Maximum: 200,000 pages/month
In the Box Manuals, DVD-ROM, Starter toner cartridge x 1, Image Drum x 1, Power cable
PRINT
Print Speed A4 52 ppm
Letter 55 ppm
First Print Out Time Approx. 5.0 seconds
Print Resolution 1200 x 1200 dpi
600 x 600 dpi
Physical dot pitch: 1200 dpi
Interface 1000BASE-T/100BASE-TX/10BASE-T, (Optional) Wireless LAN (IEEE802.11b/g/n), USB 2.0 (Full Speed), USB 2.0 (High Speed), USB 2.0 (High Speed) Host
Protocol TCP/IP, IPX/SPX, EtherTalk
Printer Language Postscript/PDF Emulation, PCL 6 (XL) emulation, XPS emulation, PCL 5e emulation
Supported OS Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, Windows Server 2003, Windows Server 2003 x64, OS X 10.10, OS X 10.9, OS X 10.8, OS X 10.7, Mac OS X 10.6, Mac OS X 10.5, Mac OS X 10.4
Memory (Std./Max.) 2GB/2GB
Hard Disk Drive 320 GB
Font PCL emulation 80 scalable fonts, PostScript emulation 136 fonts
Paper Type Plain, Transparencies, Label, Envelope
Paper Size A4, A5, A6, B5, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Envelopes, Index Card (3″ x 5″) (75 x 125mm), Custom Size: Width 64-216 mm x Length 127-1321 mm
Paper Weight Tray 1 : 64 – 220 gsm
(Optional)Additional Tray : 64 – 220 gsm
(Optional)Large Capacity Feeder : 64 – 220 gsm
Multi-purpose tray : 64 – 253 gsm
Input Capacity Tray 1 : 530 sheets
(Optional)Additional Tray : 530 sheets
(Optional)Large Capacity Feeder : 2000 sheets
Multi-purpose tray : 100 sheets
Output Capacity Face Down : Max. 500 sheets
Face Up : Max. 100 sheets
Finishing Function Offline stapling 20 sheets
SCAN
Scan Resolution Max. 600 x 600 dpi
Scan Speed Max. 37 ipm Color, 52 ipm mono
Interfaces USB 2.0 (High Speed) Host, 1000BASE-T/100BASE-TX/10BASE-T
Supported Protocol SMB, FTP(S), TWAIN, WIA2.0, ICA
Output Format Secure PDF, High compression PDF, JPEG, TIFF, XPS
Driver TWAIN, WIA2.0(Windows Vista or later)
FAX
Applicable Line PSTN
Interface RJ-11 x 2 (Line, Tel)
Transmission Resolution Normal: 8 dots/mm x 3.85 lines/mm
Fine/Photo: 8 dots/mm x 7.7 lines/mm
Extra Fine: 8 dots/mm x 15.4 lines/mm
Ultra-Fine: 16 dots/mm x 15.4 lines/mm
Communication Speed Super G3: 33.6kbps, G3: 14.4kbps
Encoding Method MH, MR, MMR, JBIG
Communication Mode Super G3, ITU-TG3
Transmission Time Approx. 2.0 sec. / page
Memory Max. 1,000 pages (1000MB)
Other Function Broadcast(200 group, 400 locations/group), Delayed Tx, Duplex scanning, PC Fax, Speed Dial(3000 locations)
DOCUMENT FEEDER
Type Reverse Automatic Document Feeder (RADF)
Original Size A4, A5, A6, B5, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Folio
Original Weight 60 – 105 gsm
Capacity Max. 100 sheets
Original Exchange Speed Simplex 40 ppm color, 40 ppm mono
